An inferential, single jet, super dry, straight reading type, hermetically sealed water meter with magnetic drive.
Standards
Conforms to ISO 4064, Class B
Conforms to ISO 4064, Class B
- Highly sensitive to low flow rates and very accurate over its entire flowrange
- Low head loss.
- Totalizer leak proof, totally dry.
- Self lubricating gears and bearings.
- Long maintenance free working life.
- Sealed against tampering.
- Water to reach upper floors.
Options
Remote reading facility/pulse output available on request.
| Accuracy | 15mm | ||||
| CL-B | |||||
| Starts Reoistration at | 14 | ||||
| Lower limit of flow, Qmin | l/h | ±5% | 30 | ||
| Transitional flow, Qt | l/h | ±2°/o | 120 | ||
| Nominalflow, Qn | l/h | ±2°/o | 1500 | ||
| Maximumflow, Qmax | l/h | ±2°/o | 3000 | ||
| Test pressure | MPa | 2 | |||
| Temperature suitabiltity | oc | 50°C | |||
| Dialregistration | kl | 99999 | |||
| Smallest reading | I | 02 |

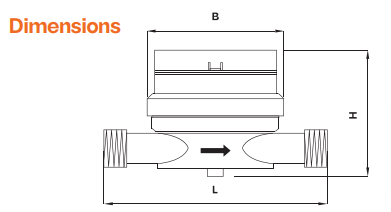

| Description | 15mm | |
| Meter thread | l"BSP | |
| End connection threads | 3/4"BSP | |
| Length of meter with coupling | 245 | |
| Length of meter without coupling | L | 108 |
| Height | H | 75 |
| Width | B | 81 |
| Weight with coupling | 0.506 kg |
